Always confirm the collector emitter and base pins before placing in circuit. Do not use or store it in temperature above +150 centigrade and below -65 centigrade. Always use a suitable base resistor to provide required current for saturation.

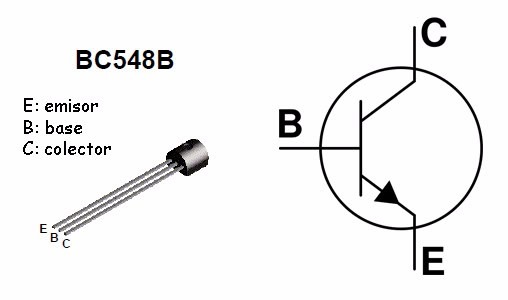

The max transition frequency of the transistor is 300MHz so it will also perform well in RF circuits under 300MHz frequency.įor long run in a circuit it is important to not increase load more than 100mA on it, and do not exceed the voltage across this transistor to 45V DC. The BC547 is a widely used transistor and it can be used in any general purpose application, it can also be used as a substitute and replacement to many transistors, therefore it can be used in variety of electronic circuits for example switch small load on very low input voltage and current and also in amplification of small audio and other signals. It can be used as for any type of general amplification or switching. (100) Arduino CNC Shield V3.0 Wiring and Pinout - Pinterest. The typical saturation voltage is only 90 millivolts which is also a good sign to use it as a switch. BC558 is a TO-92 packaged BJT transistor that can be used in many types of general purpose applications. The transistor is having very good DC current gain and low noise capabilities due to which it is ideal to use in signal amplification stages. BC548 npn transistor datasheet pinout complementary pnp, BC108 Transistor Pinout, Datasheet, Equivalent, Circuit & Working BC548 Transistor. the 'pinout', uses the same convention used by some - but not all - other TO-92 devices. The assignment of transistor elements (b,c,e) to leads, i.e. It comes in TO-92 packaging and the maximum output current this transistor can handle is 100mA. Pinout and specifications The BC548 is supplied in a standard TO-92 3-pin package. Besides these uses it can also be used in commercial circuits. Max Storage & Operating temperature Should Be: -65 to +150 CentigradeĢN2222, 2N3904, 2N4401, BC337 (Pin configuration of some transistors are different from BC547, check pin configuration before replacing in a circuit)īC547 Transistor Explained / Description:īC547 is a general purpose BJT NPN transistor mostly used in electronics hobbyists and educational electronics projects.The resistance values of R6 and R7 depend on the values of. Minimum & Maximum DC Current Gain (h FE): 110 – 800 The BC548 has the same pinout as the BC337, so the stripboard placing is the same for both types.Max Collector Dissipation (Pc): 500 miliWatt.Max Collector-Emitter Voltage (V CE): 45V.Advertisements Features / technical specifications:
